Post-Production Studios

Winter 2013

This post-production studio space uses a structural system that is both expressive and non-repetitive. A system was devised that uses overlapping pavilions and concrete cores with beams supporting a steel frame. Within the steel frame lies a secondary structural system based on cellular geometry. The overlapping areas of the pavilion functions as vertical circulation. The solid pattern in the concrete contrasts the light pattern of the voids in the steel perimeter.

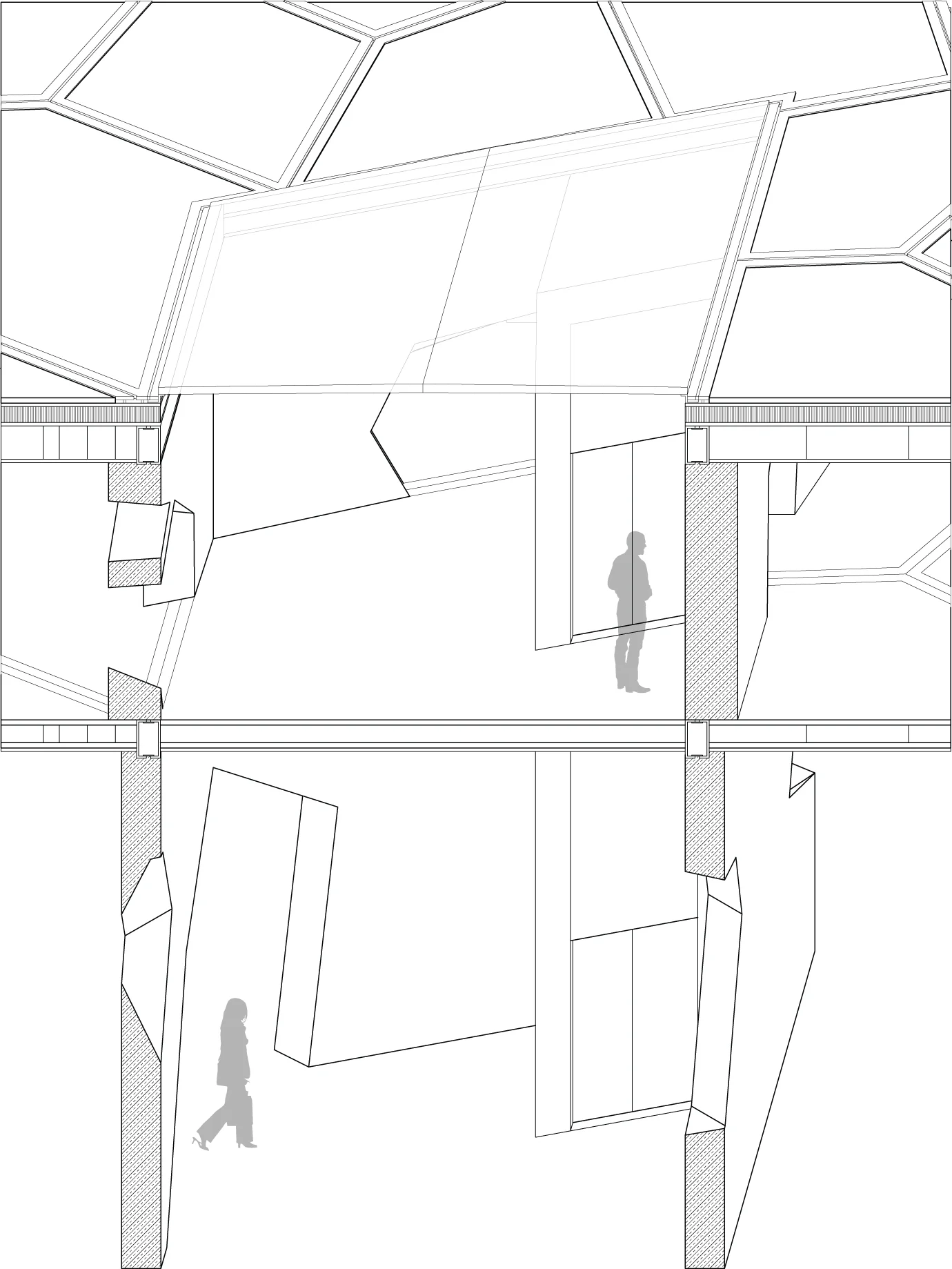

Detail Section

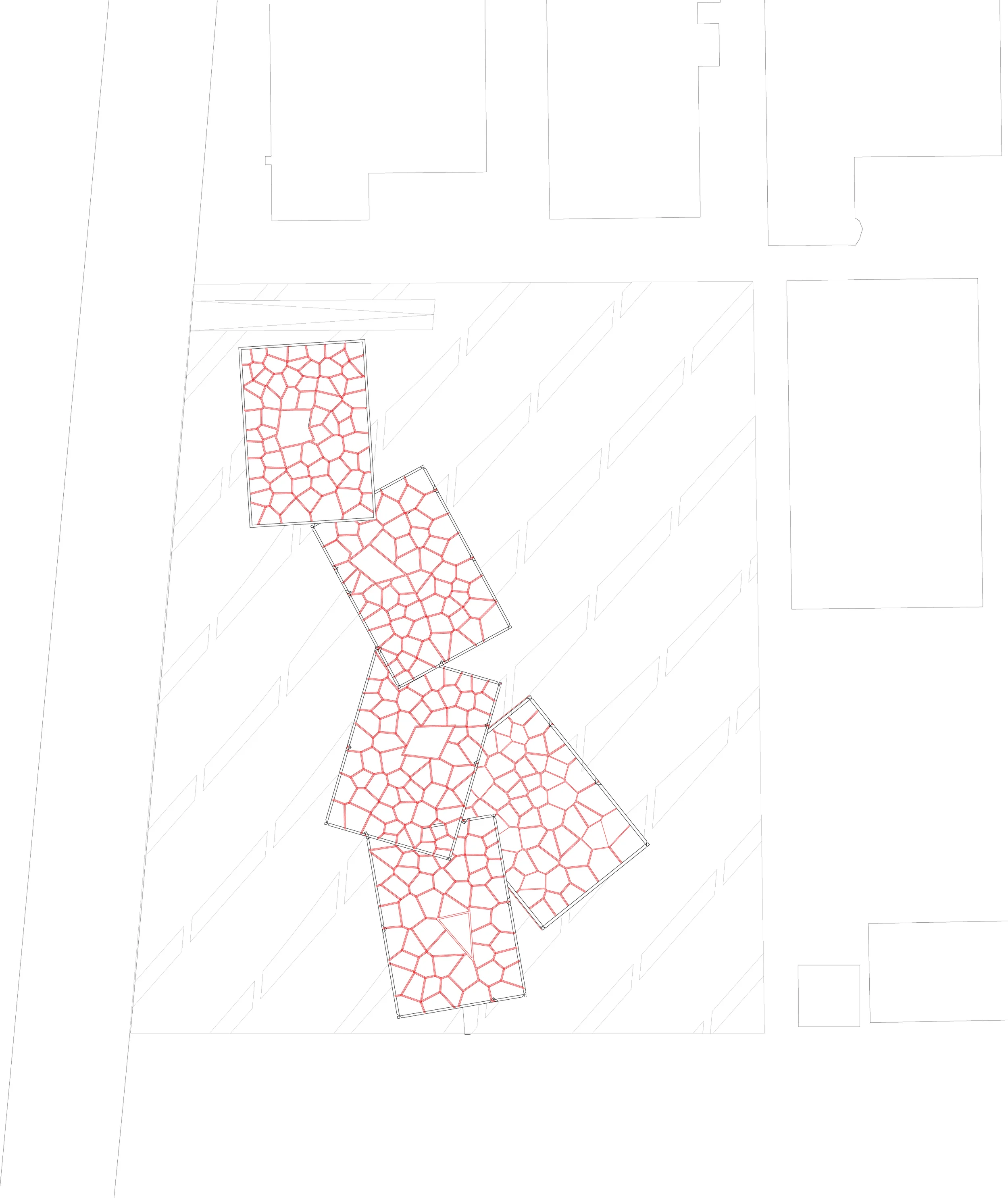

Site Plan

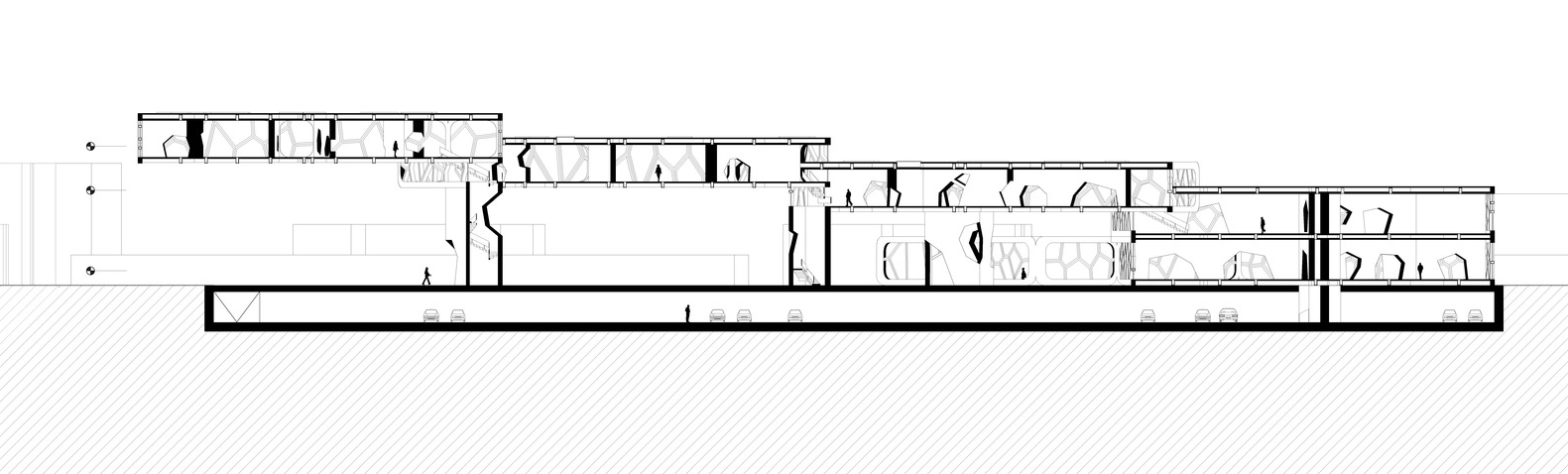

Longitudinal Section

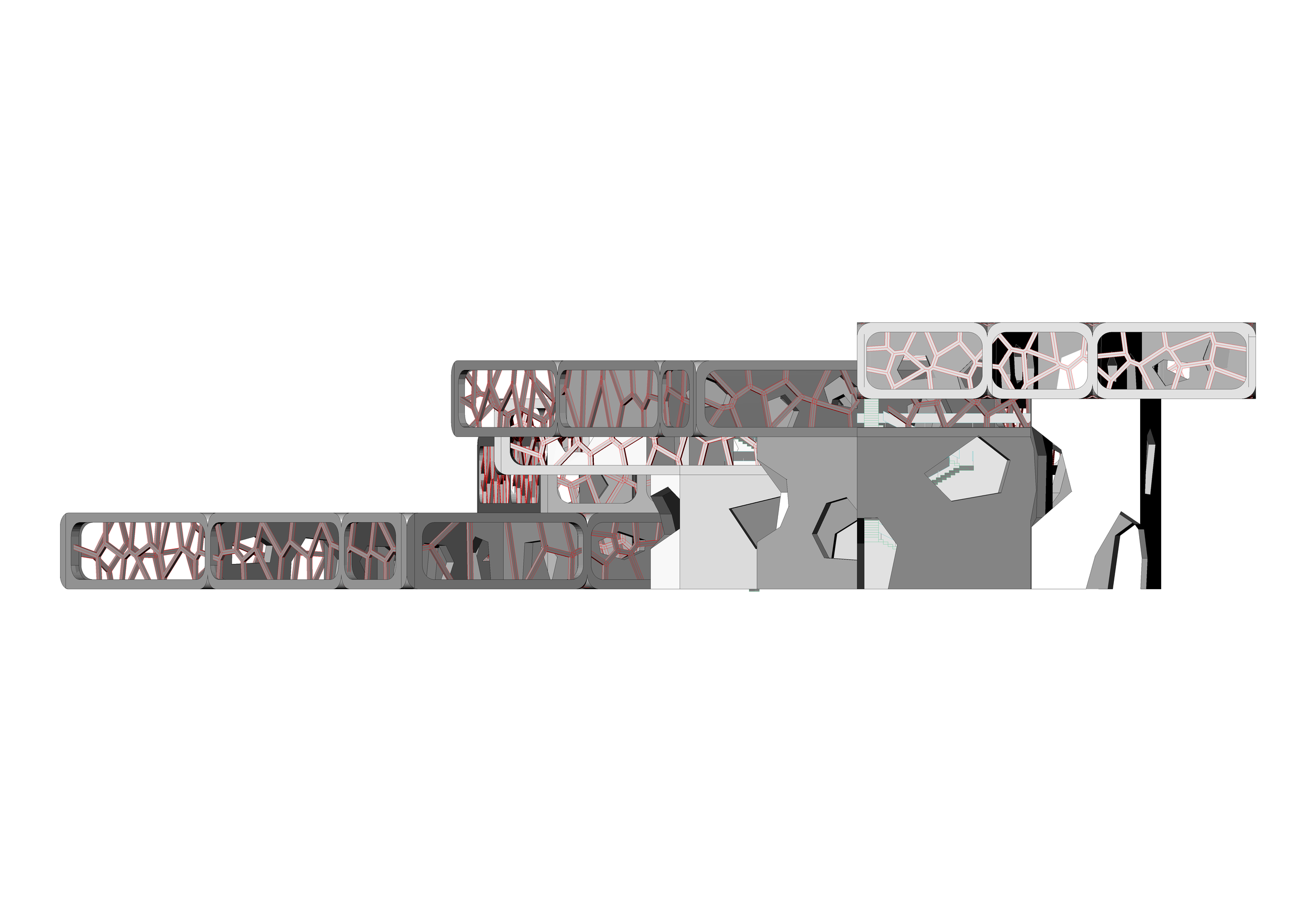

South Elevation

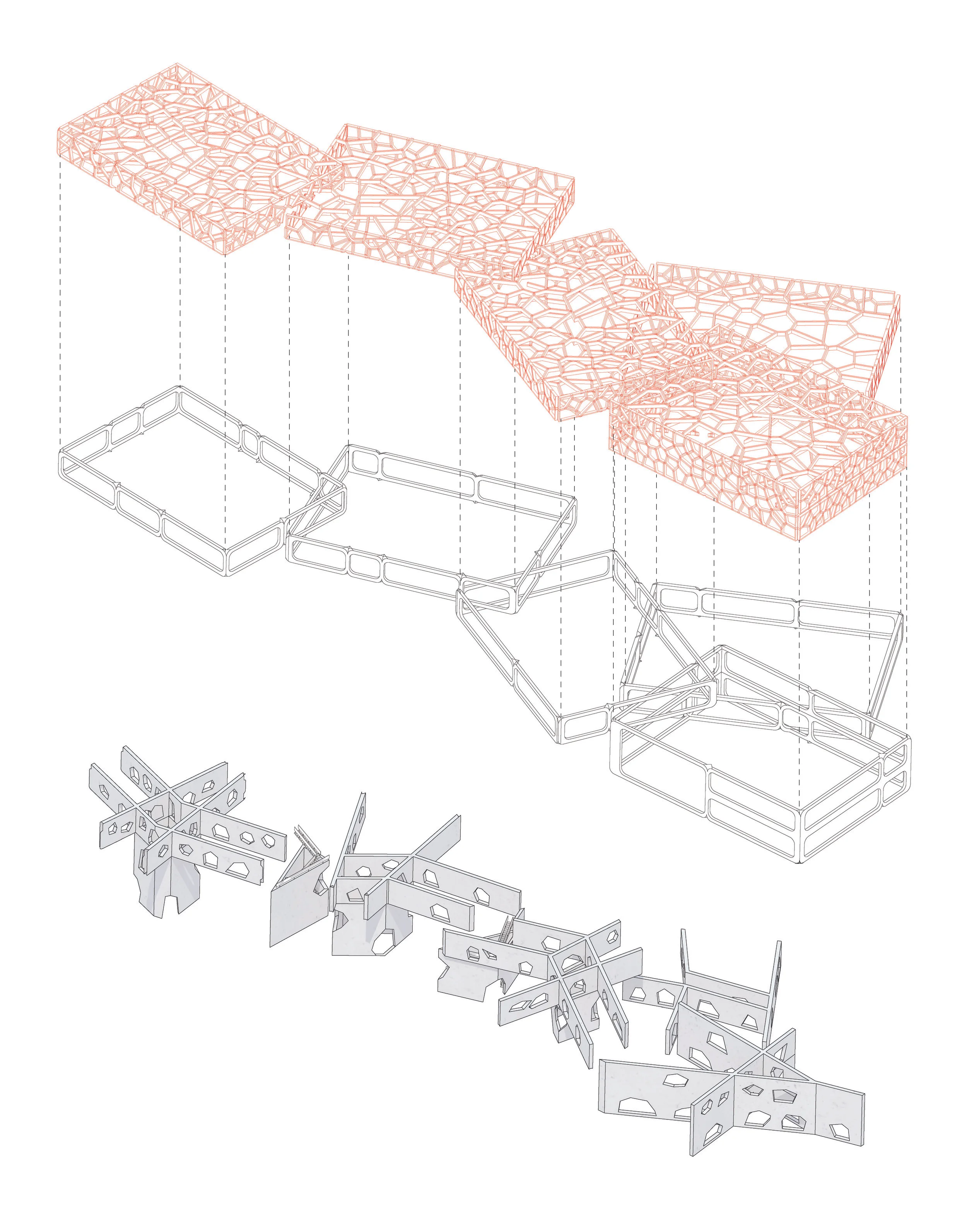

From Top: Cellular Steel Structure, Frame for Openings, Concrete Cores
